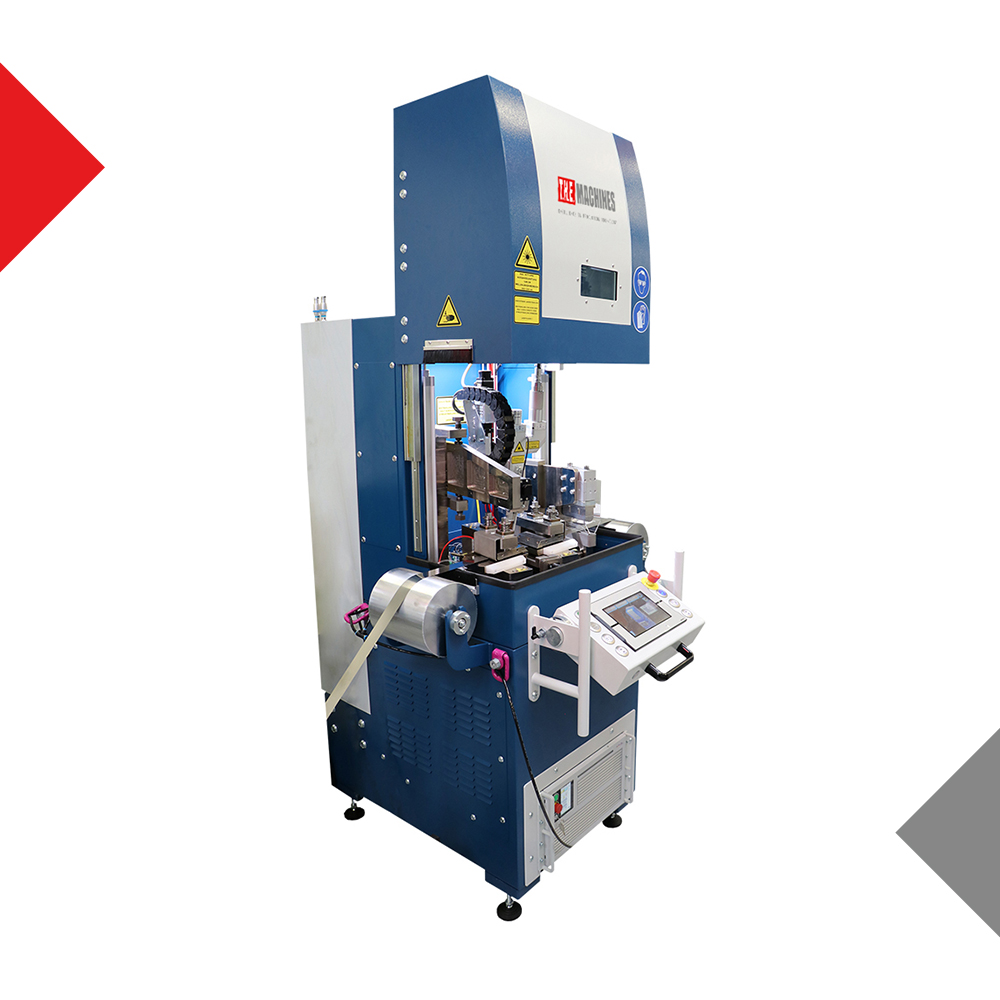

laser cross welder_SLT100

SLT100-0°

Laser cross welding

Tape width*	5 – 70 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm Cu 0.10 – 1.20 mm
Welding angle	0°
* subject to alloy grade

laser cross welder_SLT100

SLT100-0°-M

Laser cross welding

Tape width*	With Martyr: 5 – 14 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm Cu 0.10 – 1.20 mm
Welding angle	0°
* subject to alloy grade

laser cross welder_SLT100

SLT100-15°

Laser cross welding

Tape width*	5 – 115 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm
Welding angle	15°
* subject to alloy grade

laser cross welder_SLT100

SLT100-15°-M

Laser cross welding

Tape width*	With martyr: 5 – 60 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm Cu 0.10 – 1.20 mm
Welding angle	15°
* subject to alloy grade

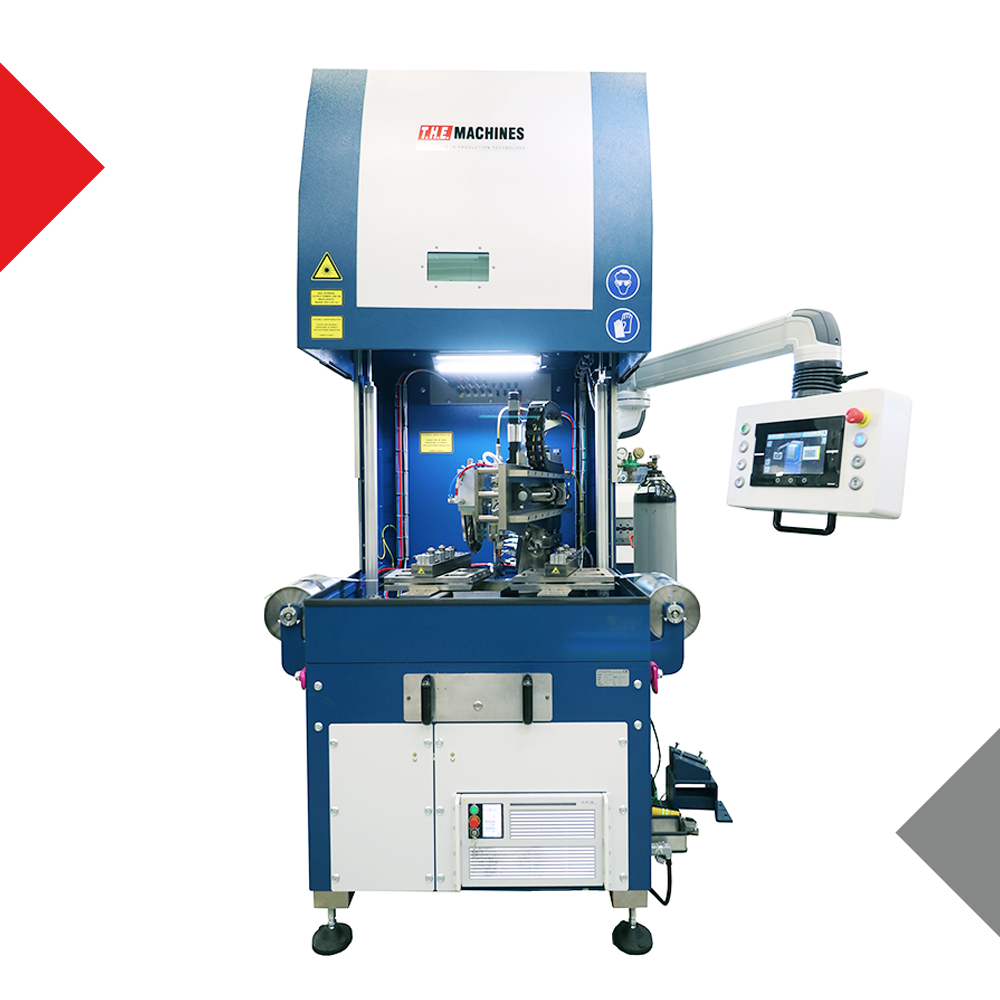

laser cross welder_SLT200

SLT200-15°

Laser cross welding

Tape width*	20 – 220 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm Cu 0.10 – 1.20 mm
Welding angle	15°
* subject to alloy grade

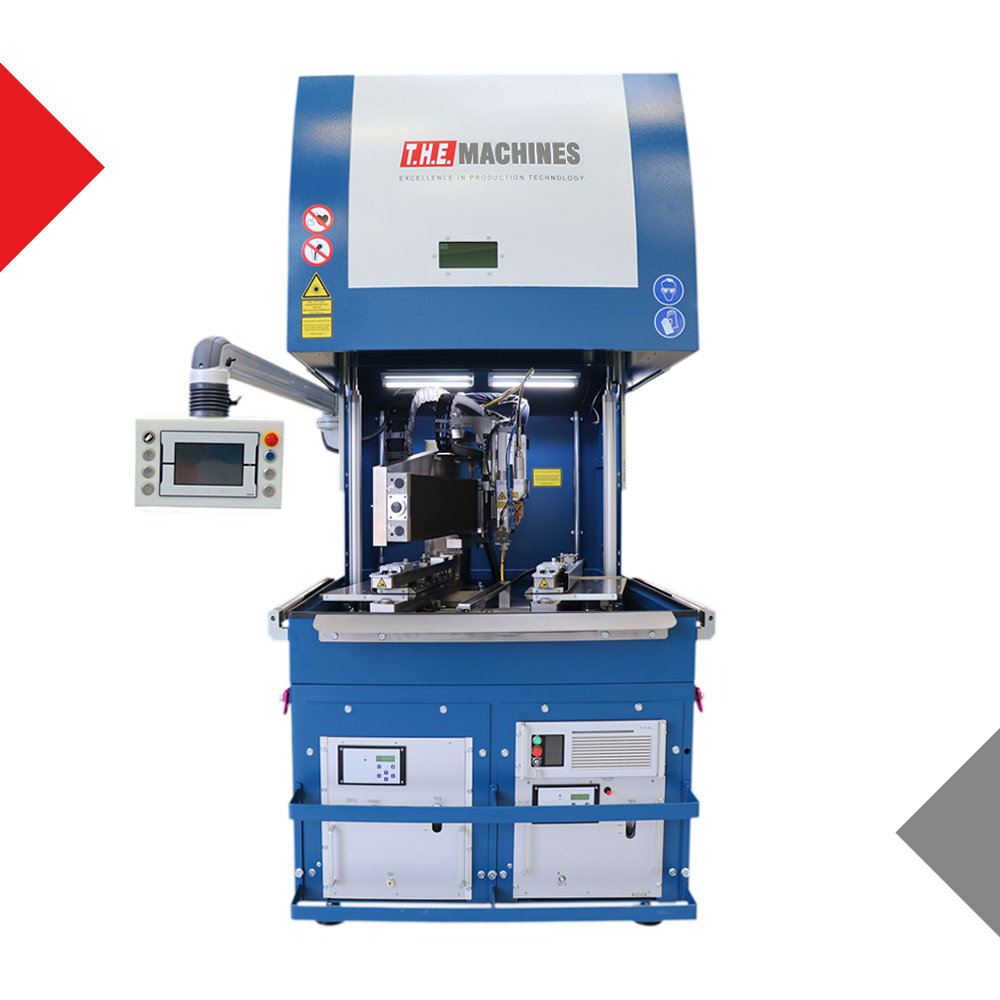

laser cross welder_SLT400

SLT400-0°

Laser cross welding

Tape width*	40 – 440 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm Cu 0.10 – 1.20 mm
Welding angle	0°
* subject to alloy grade

laser cross welder_SLT400

SLT400-15°

Laser cross welding

Tape width*	40 – 440 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm Cu 0.10 – 1.20 mm
Welding angle	15°
* subject to alloy grade

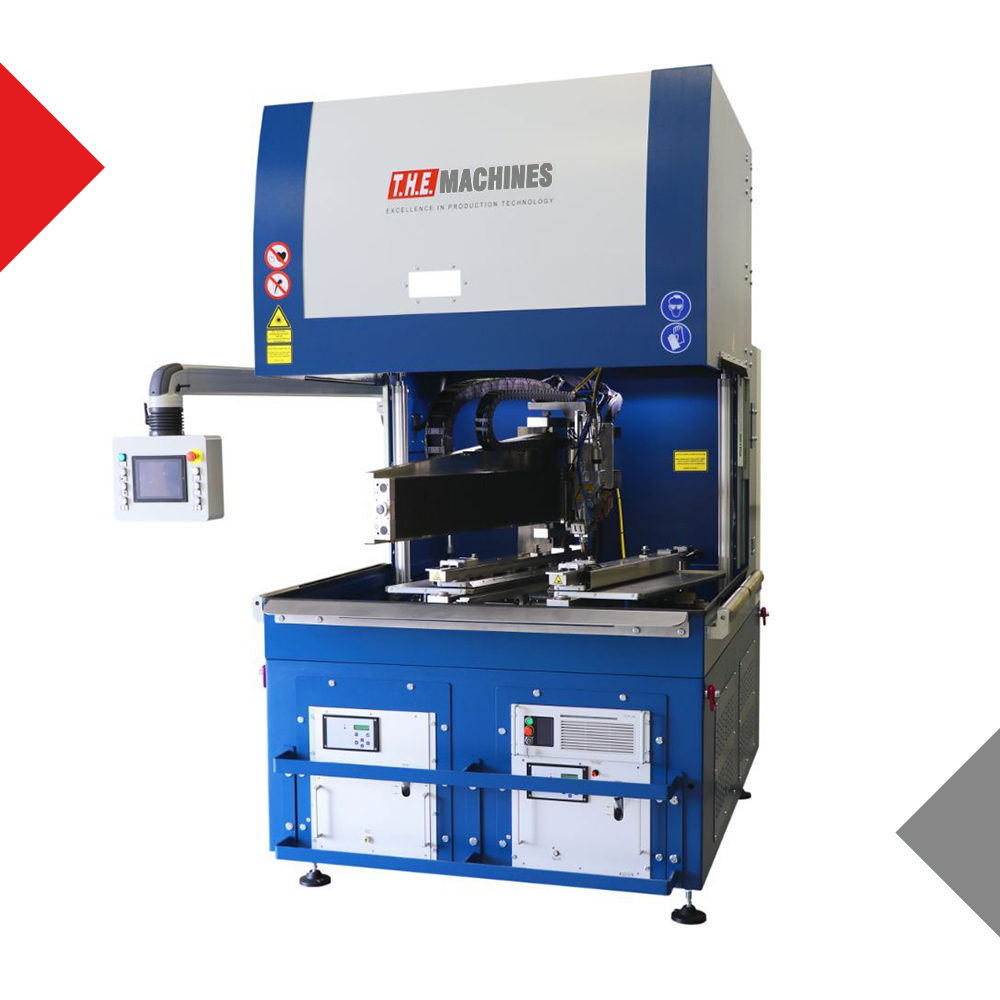

laser cross welder_SLT750

SLT750-15°

Laser cross welding

Tape width*	75 – 750 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm Cu 0.10 -1.20 mm
Welding angle	15°
* subject to alloy grade

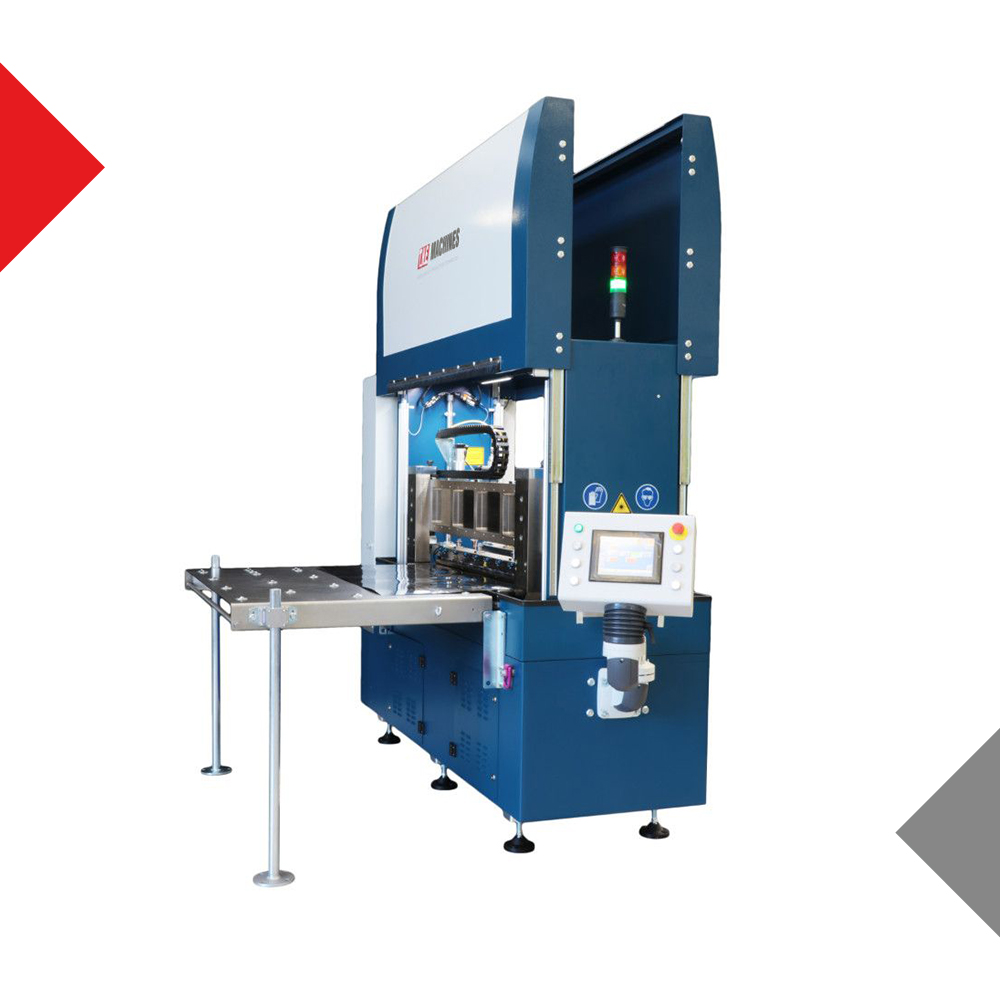

laser cross welder_SLT1400

SLT1400-0°

Laser cross welding

Tape width*	140-1400 mm
Tape thickness*	Steel 0.15 – 3.00 mm Al 0.20 – 2.50 mm Cu 0.10 – 1.20 mm
Welding angle	0°
* subject to alloy grade
