Seamless labyrinth drip tape extrusion line

LIT 106

Pipe diameter	12 – 36 mm
Pipe wall thickness	0.15 – 0.40 mm
Line speed max	400 m/min

discover more

Automatic card board spool dual take-up

BDA

Type	BDA 612	BDA 613
Pipe diameter	12-36 mm	12-36 mm
Pipe wall thickness	0.15-0.90 mm	0.15-1.20 mm
Winding speed max	300 m/min	400 m/min
Outer diameter of spool max	610 mm	610 mm

discover more

PE layflat hose extrusion line with integrated outlets

LFP 153

Hose diameter	50 – 160 mm / 2’’- 6’’
Line speed max	15 m/min
Coiling type	Pad coils / spools

discover more

Slit flat-dripper extrusion line

LIS 106

Pipe diameter	12 – 36 mm
Pipe wall thickness	0.15 – 0.45 mm
Line speed max	400 m/min

discover more

Flat-dripper extrusion line for thin and medium wall

LIR 106

Pipe diameter	12 – 36 mm
Pipe wall thickness	0.15 – 0.90 mm
Line speed max	400 m/min

discover more

Flat-dripper extrusion line for thin and thick wall

LIR 212

Pipe diameter	12 – 36 mm
Pipe wall thickness	0.15 – 1.20 mm
Line speed max	400 m/min

discover more

Cylindrical drip emitter extrusion line

MIR 209

Pipe Diameter	12 – 26 mm
Pipe wall thickness	0.60 – 1.20 mm
Line speed max	150 m/min

discover more

Turn key solutions for drip irrigation

discover more

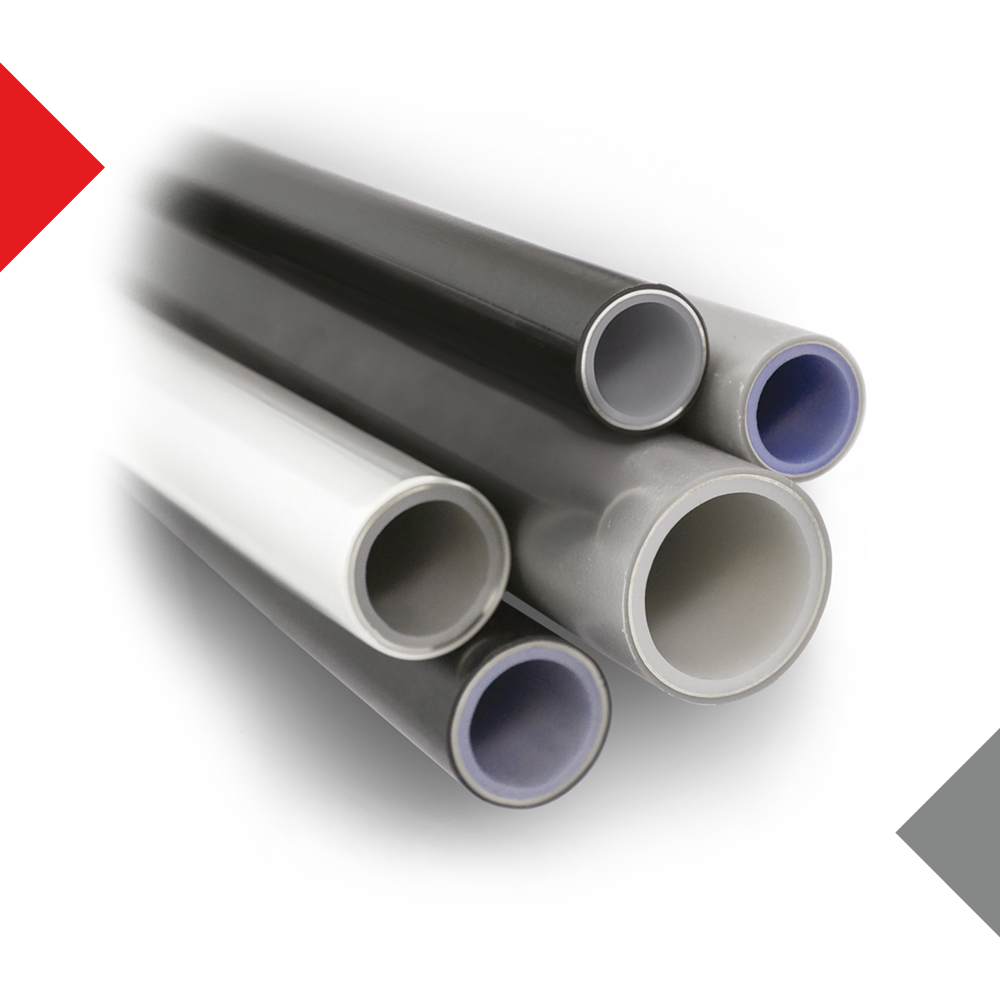

Multilayer pipe forming and welding production line for tube 10-40 mm

MFWL 40

Tube diameter	10 – 40 mm
Tape thickness	0.10 – 0.60 mm
Geared speed	100 m/min
Production speed max	Up to 80 m/min

discover more

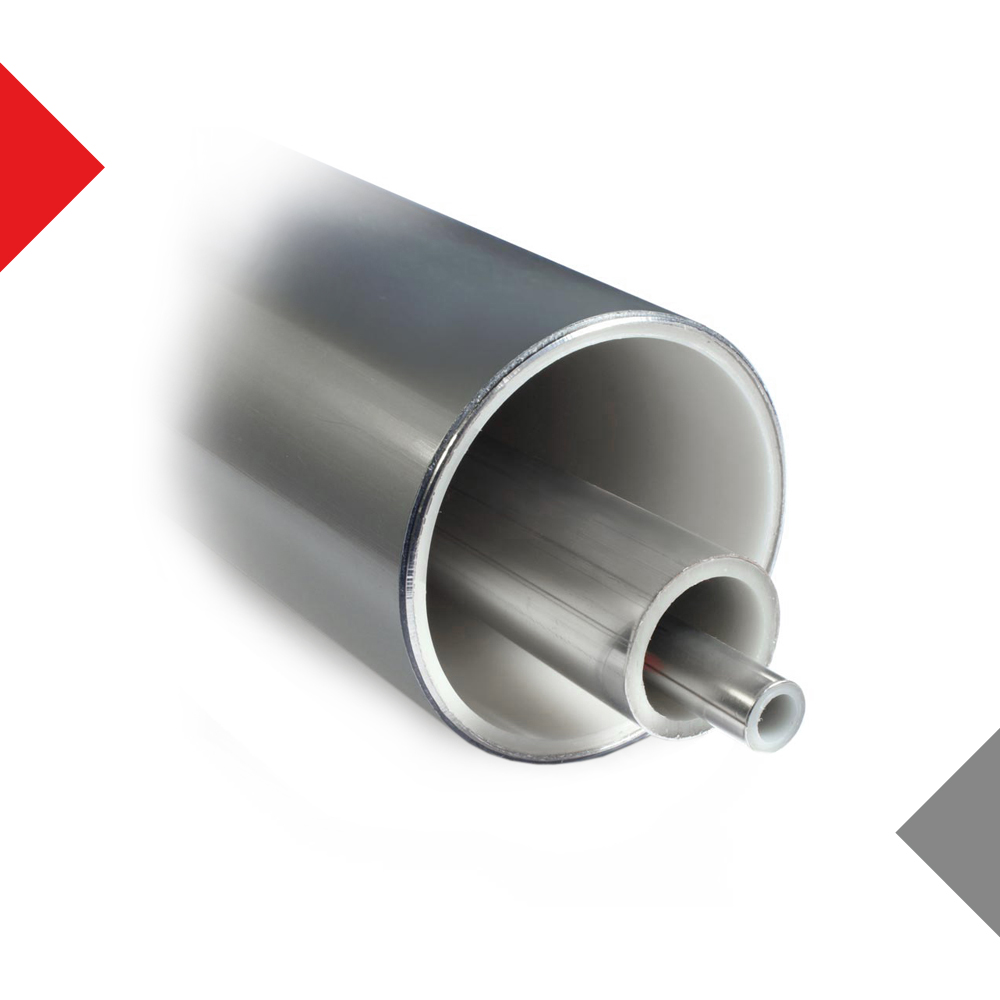

Multilayer pipe forming and welding production line for tube 16-63 mm

MFWL 63

Tube diameter	16 – 63 mm
Tape thickness	0.10 – 0.60 mm
Geared speed	80 m/min
Production speed max	Up to 60 m/min

discover more

OPGW / FIST production line

OFWL 012

Tube diameter	2.5 – 12 mm
Tape thickness	0.05 – 1.20 mm
Geared speed	40 m/min
Production speed	30 m/min

discover more

Central binder

SBH 250 / 400

Type	SBH 250	SBH 400
Binding speed max	2500 rpm	4000 rpm
Yarn Binding traction version 1	0.8 – 4.0 N	0.8 – 4.0 N
Yarn Binding traction version 2	1.2 – 6.0 N	1.2 – 6.0 N
Bobbin max D	230.0 mm	230.0 mm
Yarn materials	Aramid, polyester, water-blocking etc.

discover more

High speed automatic coiler

ADC 1001

Pipe diameter	12-35 mm
Pipe wall thickness	0.60-1.40 mm
Winding speed max	200 m/min
Outer coil diameter	800-1000 mm

discover more

Drip irrigation pipes quality control test bench

DFC 101

Type	10 measuring stations
Pipe diameter	12-22 mm
Pipe wall thickness	0.125-1.20 mm
Dripper flow range	0.4-8 L/h
Pressure range	0.3-6 Bar

discover more

Alloy-tube_automotive-longtitudinal-laser-welding-hydroforming

Metal tube production line – by rollforming and laser welding

UFWL 012

Tube diameter	2.5 – 12 mm
Tape thickness	0.05 – 1.20 mm
Geared speed	40 m/min
Production speed	Up to 30¹ m/min

¹ in function of dimension and material

discover more

Inline inspection of weld seams

ECC100 – ICO

Tube diameter	Min 0.5 mm
Wall thickness Aluminium	0.1 – 10 mm
Wall thickness Austenitic steel	0.1 – 20 mm

discover more

Central binder (individual)

SBH 250 / 400

Type	SBH 250	SBH 400
Binding speed max	2500 rpm	4000 rpm
Yarn Binding traction version 1	0.8-4.0 N	0.8-4.0 N
Yarn Binding traction version 2	1.2-6.0 N	1.2-6.0 N
Bobbin max D	230.0 mm	230.0 mm
Yarn materials	Aramid, polyester, water-blocking etc.

discover more

SLT100-0°-M

Laser cross welding

Tape width*	With Martyr: 5 – 14 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm Cu 0.10 – 1.20 mm
Welding angle	0°
* subject to alloy grade

discover more

SLT100-15°

Laser cross welding

Tape width*	5 – 115 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm
Welding angle	15°
* subject to alloy grade

discover more

SLT100-15°-M

Laser cross welding

Tape width*	With martyr: 5 – 60 mm
Tape thickness*	Steel 0.05 – 3.00 mm Al 0.10 – 2.50 mm Cu 0.10 – 1.20 mm
Welding angle	15°
* subject to alloy grade
